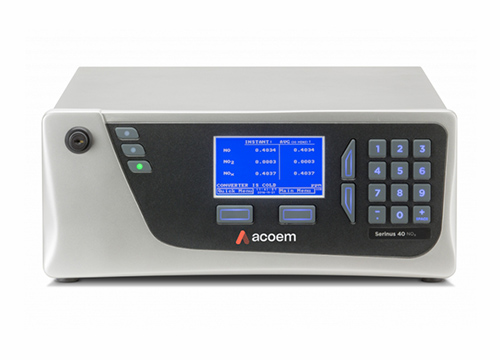

NOx Analyzer
TUV Certified NOx analyzer adopts chemiluminescence method and combines with advanced microprocessor technology. It provides accurate and reliable detection of NOx at ppb-ppm level which meets the requirements of ambient gas monitoring and online monitoring of pollution source with dilution method.
This analyzer can completely control all functions and also provides online instruction for important work parameters. Real time auto compensation for temperature and pressure will be made during measurement.
- CPCB Approved Technology
- TUV Certified
- US EPA Compliant
- Advanced Chemiluminescence Technology for Accurate NOx Monitoring
- High accuracy: Ppb-ppm level
- Reliable & stable Performance
- Low Detection Limit
- Remote Connectivity
- The operation principle is based on chemiluminescence method. After absorbing the chemical energy and the reacting with O3 . NO is inspired to excited state and once it returns to ground state, it will release energy in form of light quantum. The intensity of light emission is directly proportional to gas concentration, which could realize quantitative measurement.
- Measurement range: 0-50ppb to 0-20ppm,(selectable).
- NO, NO2, NOx is measured separately.
- Excellent stability and repeatability
- Multiple functional operations by microprocessor.
- Task software is allowed to monitor test data during operation.
- Continuous self-checking with alarm function.
- Compensation function for temperature and pressure.
- Permeation drying tube equipped with ozone generator.
- Bidrection RS-232 port for remote control.
- Digital output working parameter.
- USB and Ethernet interface.
- Colorful display and screen touch operation.
- Large memory and history data saved automatically.
- Response time optimized by signal filter technology of self-adaption.
- Response time ≤ 90s
- Ambient Air Quality Monitoring
- Industrial Emission Monitoring
- Pollution Source Monitoring
- CAAQMS Applications
