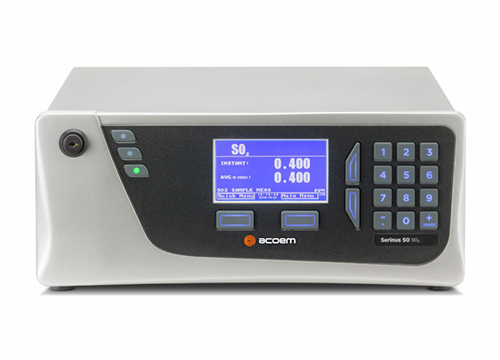

SO2 Analyzer

TUV Certified SO2 analyzer adopts ultraviolet fluorescence method and combines with advanced microprocessor technology. It provides accurate and reliable detection of SO2 at ppb-ppm level which meets the requirements of ambient gas monitoring and online monitoring of pollution source with dilution method.

This analyzer can completely control all functions and also provides online instruction for important work parameters. Real time auto compensation for temperature and pressure will be made during measurement.

  • CPCB Approved Technology
  • TUV Certified
  • US EPA Compliant
  • Advanced UV Fluorescence Technology for Accurate SO2 Monitoring
  • High accuracy: Ppb-ppm level
  • Reliable & stable Performance
  • Smart & User Friendly Operation
  • Ideal for CAAQMS & Industrial Monitoring

The operation principle is based on ultraviolet fluorescence method. After absorbing the ultraviolet energy, SO2 molecule is inspired to excited state and once it returns to ground state, it will release specific fluorescence. The intensity of fluorescence could realize quantitative measurement.

Measurement stability is greatly improved by using timed dark current measurement to compensate photomultiplier drift and reference detector to calibrate the change of UV light intensity. With high-efficiency hydrocarbon remover and unique optical design the analyzer can effectively clear up in exactitude caused by interference.

  • Measuring range: 0-50ppb to 0-20ppm,(selectable).
  • Dual measurement range and auto set range.
  • Multiple functional operations by microprocessor.
  • Continuous self-checking with alarm function.
  • Self-check of light intensity attenuation.
  • Compensation function for temperature and pressure.
  • Bidrection RS-232 port for remote control.
  • Digital output working parameter.
  • USB and Ethernet interface.
  • Colorful display and screen touch operation.
  • Large memory and history data saved automatically.
  • Task software is allowed to monitor test data during operation.
  • Response time optimized by signal filter technology of self-adaptation.
  • Ambient Air Quality Monitoring
  • Industrial Emission Monitoring
  • Pollution Source Monitoring
  • CAAQMS Applications
