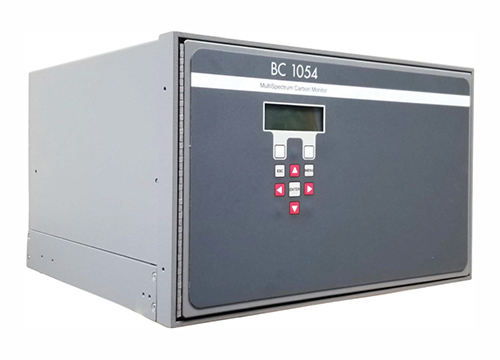

Multi Spectrum Black Carbon Analyzer

The Met One Instruments BC 1054 Multi-spectrum Black Carbon Analyzer continuously measures the transmittance of light across filter media onto which particulate matter is accumulating and in real-time calculates the black-carbon “BC” concentrations at 10 different wavelengths ranging from the near-UV to the near-IR. By employing the same widely accepted calibration constants and principles of operation as those used in the Magee Aethalometer, the BC-1054 produces nearly identical results, but at a fraction of the cost.

BC 1054 will directly connect to a variety of products, such as the BAM-1020, discrete particle size and counting modules, or a wide array of meteorological sensor inputs.

  • Tape-Saving mode for economical collection of data in high BC regions
  • Optional cloud-based modem and data service permits collected data to be uploaded and stored on the Web
  • Data access in near real time remotely without the need for an external data logger
  • The simple sensor design requires no flow splitting, employs a single mass flow controller and is well matched for use with the filter media
  • Flow checks, audits and trouble-shooting are simple to perform
  • Actual flows are measured
  • Concentrations are calculated under actual flow conditions but may be displayed in either actual or standard conditions.
  • Air Quality Surveillance
  • Global Warming Studies
  • Particulate Emissions Studies
  • Near-Roadside Monitoring
  • Visibility Studies
  • Climatology Studies
  • Source Apportionment Determination
  • Angstrom Absorption Exponent Determination
