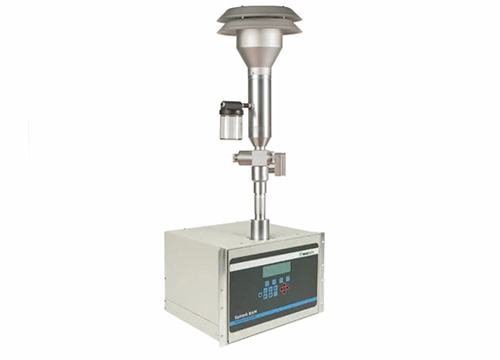

PM2.5 Analyzer

TUV Certified Ambient PM2.5 detector using beta ray attenuation counting principle. It can be widely used in air quality monitoring, mobile ambient monitoring station and real-time respirable particles monitoring in industry, building, residential area, occupational disease research institute, indoor environment monitor, heavy metal analysis and etc.

Device design of beta ray attenuation complying with US EPA standard. The detector adopts enrichment technology of ambient particulate matter; uses EPA standard cutting head for ambient particulate matter: PM2.5. It has simple but reliable mechanical driving structure and modularized design which ensure accurate and reliable measurement and guarantee the device can work for long term.

  • CPCB Approved Technology
  • TUV Certified
  • US EPA Compliant
  • Advanced Beta Ray Attenuation Technology for Accurate PM2.5 Monitoring
  • High accuracy: Ppb-ppm level
  • Reliable & stable Performance
  • Smart & User Friendly Operation
  • Ideal for CAAQMS & Industrial Monitoring

The main principle of this analyzer mainly uses enrichment technology of ambient particulate matter and beta ray attenuation method. The particulate matter smaller than 2.5μm is automatically concentrated on rolling type filter film. The beta ray produced by irradiator C14 passes through the filter film and is received by detector. The detector consists of photomultiplier, plastic scintillator and counter. As per according to the energy of received beta ray, it can realize quantitative analyze the enrichment thickness and work out the PM2.5 concentration.

  • Beta ray attenuation complying with US EPA and national standard.
  • Simulated identification and aerodynamics based cutting head.
  • Flow control system with precise closed loop feedback; stable sampling flow and small error.
  • Sampling flow is measured by mass flow sensor and corrected by collecting ambient temperature and pressure to get the sampling flow as field condition.
  • Various external ports, such as RS232 / RS485, 4~20mA and etc.
  • Uses C14 source which is of low-density,low activity and long half-life to realize stable measurement. No special protection is needed. Reliable and safe. No radioactive contamination will be caused.
  • Flexible paper-pressing structure. Mechanical driving design is simple and reliable; greatly reduce paper breaking and paper jam and avoid the error caused by the moving of filter paper.
  • Pipeline heating system is used to eliminate interference from ambient humidity and make the detector fit into sudden change of the weather.
  • Step-by-step motor precisely controls paper rolling system by using photo isolator. High accuracy of repeat position, simple construction.
  • Ambient Air Quality Monitoring
  • Industrial Emission Monitoring
  • Pollution Source Monitoring
  • CAAQMS Applications
