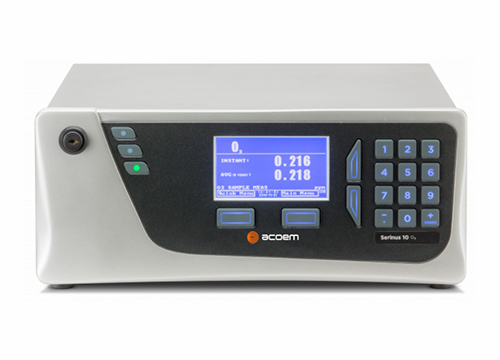

O3 Analyzer
The Ozone Analyzer adopts the principle of Ultra violet Spectrophotometry and combines with advanced Micro-processing Technology to provide accurate and reliable low-concentration O3 detection of “ppb~ppm” level, which meets application requirements of atmospheric monitoring.
- CPCB Approved Technology
- TUV Certified
- US EPA Compliant
- Advanced UV Spectrophotometry Technology for Accurate O3 Monitoring
- High accuracy: Ppb-ppm level
- Reliable & stable Performance
- Smart & User Friendly Operation
- Ideal for CAAQMS & Industrial Monitoring
The basic principle of Ozone Analyzer is UV Spectrophotometry. The high energy ultraviolet light of photometer passes through the sample absorption cell, and the sample absorption cell will be pumped into sample gas without O3 (remove O3) and sample gas with O3 (not remove O3). The absorbed light intensity can be measured via light detector. At last, O3 concentration can be calculated based on Lambert-Beer Law
- Measurement range from 0~500ppb to 0~10ppm, selectable
- Timed dark current compensation, high stability.
- Microprocessor realizes multifunctional operations
- Continuous self-check with alarm function
- Adaptive Signal Filtering Technology optimizes response time
- High sensitivity, high repeatability, simple operation
- Auto zeroing and span calibration, can display operation state of instrument and diagnose remotely
- The parameters of the instrument can be automatically monitored
- Colorful display and screen touch operation.
- Large memory and history data saved automatically.
- Task software is allowed to monitor test data during operation.
- Modular structure design, easy replacement and maintenance
- Self-check function of light intensity attenuation
- Ambient Air Quality Monitoring
- Industrial Emission Monitoring
- Pollution Source Monitoring
- CAAQMS Applications
