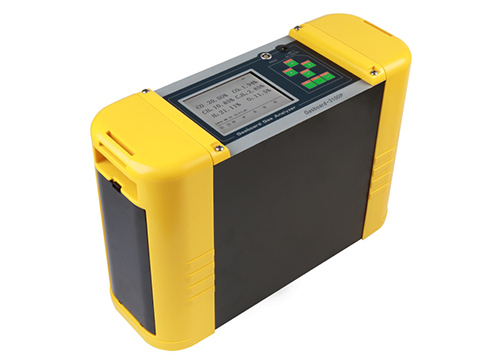

Portable Natural Gas Analyser

It is a portable type analyzer that can be used to know natural gas composition and heating value in real time. Special developed CH4 sensor can give accurate CH4 reading without cross-sensitivity to other hydrocarbon content. Unique CnHm sensor calibrated with C3H8 can detect the hydrocarbon besides CH4 and show the weighted value of total C2+ hydrocarbon in natural gas.

Standard configuration: CH4+CnHm+CO2+ Calorific Value + Wobbe Index(optional)

  • Adopts international advanced NDIR gas analysis technology.
  • Can measure the concentration of CH4, CnHm , CO2 simultaneously.
  • CnHm gas has no interference with CH4 measuring result.
  • Special designed CnHm sensor to measure the sum of higher hydrocarbon besides CH4.
  • Online Heating Value and Wobbe Index calculation in real time
  • Modular sensor design ensures easy operation and maintenance.
  • Compact and robust design with light weight, convenient for different sites usage.
  • With LCD display to indicate all data index and tactile keypad easy for operation.
  • Equipped with sample gas flow meter and needle valve to regulate the inlet gas flow
  • With constant temperature enclosure for NDIR sensors to avoid influence by temperature fluctuation and improve the measurement accuracy.
  • With function of auto-zeroing, efficiently decrease the calibration frequency.
  • In-built sampling pump for low pressure application.
  • External safety filter to protect analyzer from impurities
  • Internal rechargeable Li-ion battery for over 4hrs full function operation
  • Internal data logger for up to 1500 sets of data and RS232 COM port for data output.
  • New generation modular gas analyzer has equipped with a Bluetooth module. Assist with a smartphone APP software, it can realize remote control, data download, and remote online diagnosis function in the near future.

Coal bed gas and natural gas components monitoring and calorific value calculating.
