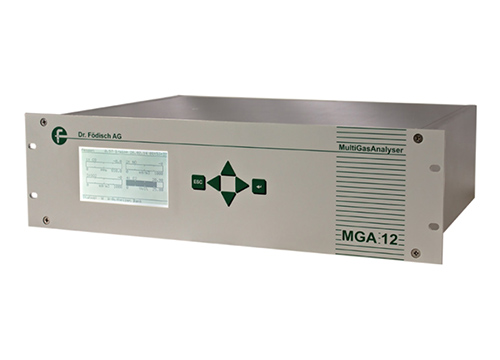

TUV (QAL1) Certified Multi Gas Analyzer

Cold gas measuring system for continuous emission measurement of pollutants in flue gas and for process control. In the Mulit Gas Analyzer four independent, selectively working measuring methods apply: infrared absorption (NDIR), electrochemical cell and paramagnetic measuring method as well as thermal conductivity sensor.

  • Multi gas analyser for extractive gas component measurement
  • Cold-dry gas analysis
  • Simultaneous measurement of up to eight gas components with limit value signalling and measuring range change-over
  • QAL 1 & MCERTS according to EN 15267-3
  • Compensation for temperature, pressure and water cross-sensitivities
  • Two separated gas paths possible
  • Local diagnosis of the system state
  • Display of bar diagram for every component
  • Flow control as well as display of flow rate
  • Reduced cross-sensitivities by internal spectral filter
  • Internal monitoring for condensate ingress with switch contact for pump switch-off
  • Control of a back-purging probe (interval and pulse time)
  • Control of zero point drift
  • Low maintenance requirement

To monitor the stack emissions continuously for air pollution from industries
