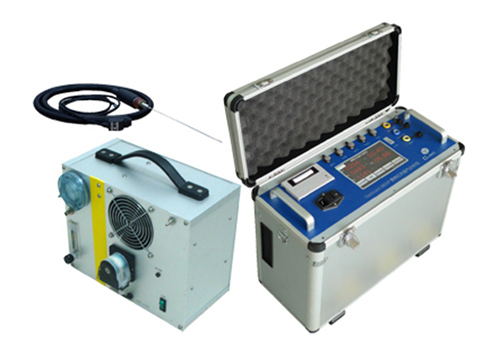

Portable NDIR Stack Gas Analyzer
It is portable type and used to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO and CO2 are measured by micro-flow infrared sensors and O2 by electrochemical sensor, with optional gas temperature, pressure, velocity etc, calculating combustion efficiency, lambda, etc.
- SO2, NO, CO and CO2 are measured by micro-flow infrared sensors and O2 by electrochemical sensor, with optional gas temperature, pressure, flow velocity etc.
- Less interference of H2O for SO2 and NO measurement.
- Built-in zero pump and auto zero calibration with fresh air.
- Built-in heated filter prevents sampling loss.
- Efficient peltier dehumidifiers for humidity measurement of low concentrations.
- PID temperature control.
- Needle valve flow control.
- Combustion and emission control research
- Certification of Continuous Emission Monitoring System (CEMS),
- Combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
